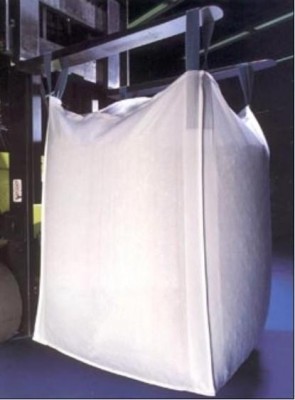

U-panel Big Bag FIBC with cross corner loops , industrial PP Bulk Bag
Description:
1. The popular Four-Panel bulk bag is our original polypropylene design and has become the industry standard by which others are judged. The versatile, cost-effective four-panel construction is excellent
for a variety of applications and is available custom designed or from our in-stock selection. The U-Panel variation consists of two side panels attached to a ‘u-shaped’ single piece ‘side-bottom-side’ unit.
2. The capacity of this type:
Volume: Two to 120 cubic feet.
Up to: 4,400 lbs.
3. The four-panel and u-panel construction has unique hems on all side panels, reducing strength loss and sifting from sewing lines. Fabric edges are turned to the outside to reduce potential contamination.
Specifications:
| Shape | U-panel / Four-panel bag |
| Capacity | Up to 4400LBS |
| Safety factor | 5:1 |
| Base size | 35*35’’, 39*39’’, 41*41’’ |
| Height | As per request |
| Color | White, Black, Orange, Blue, Yellow, Green |
| Material | 100% virgin polypropylene, 5OZ to 7OZ Coated, Uncoated, Uncoated with PE liner |
| Top type | Full open, skirt top, with filling spout: 14’’(D)*18’’, conical spout |
| Bottom type | flat bottom, discharge spout: 14’’(D)*18’’ with star petal or iris spout, with flap |
| Lifting loops | width: 2’’ / 3’’ 10’’ high cross corner loops
color: white, blue, green, black, red |
| Anti-sift | 1. coated fabric + all seams double filler cords 2. uncoated fabric + PE liner |
| Perimeter belt | Width: 1.2’’, 2’’, 3’’ |
| UV stabilized | 1% UV to 3% treated |
| Document pouch | PE ziplock, Envelope type |
| Label | As per request |
| Printing | Four colors at most in one side |
| Stitching | Plain stitching, chain stitching, overlock stitching |
| Packing | Packed on pallets, 20pallets/20'FCL, 44pallets/40'FCL |
| Lead time | 25days for 1 x 20'FCL; 45days for 1 x 40'FCL |
Application:
FIBC Bags with advantages of light weight, moisture-proof, dust-proof, no leakage, resistance to radiation, Acid corrosion, strong security, excellent performance, able to carry chemical, cement, grains, minerals and other kinds of powder, granular, quick-like material, applicable to mechanical loading, is the ideal products to reduce costs of packaging and transport.
- Type A: No special electrostatic safety features and are just common-used bags.
- Type B: Being not capable of generating propagating brush discharges. The wall of this FIBC exhibits a breakdown voltage of 4 kilovolt or less.
- Type C: Conductive FIBC. Constructed from electrically conductive fabric, designed to control electrostatic charges by grounding. A standard fabric contains conductive threads or tape.
- Type D: Anti-static FIBCs essentially refer to those bags which have anti-static or static dissipative properties without the requirement of grounding.
PRODUCTION PROCESS & PALLET PACKING & INSTRUCTION:
